Servo Motor Driven Automatic Coil Winder 4.4kw Power 160rpm Speed

Automatic Coil Winding Machine Servo Motor Driven Reactor Máquina de bobinado

Brief of automatic coil winding machine ZPX800

Automatic coil winding machine ZPX800 is a special wire winding machine for winding reactor coils and other similar products. The automatic coil winding machine can be used to wind both round wire and flat wire. Two chucks are driven by servo motors and the wire guide is also driven by a servo motor. The winding speed of the automatic coil winding machine can be adjusted by a potentiometer on the screen board. The foot pedal can not only be used to stop or start the coil winding machine but also be used to switch the rotating direction. With control system based on PLC, the automatic coil winding machine has different functions with different programs, which makes the machine be operated easily.

Main features of automatic coil winding machine ZPX800

• programmable, different programs are for different functions,
• simple operation, high automation makes it easy to operate the machine
• slow starting, when the machine runs at the beginning, the rotation speed is very slow for safety
• smooth running, strong structure guarantees the machine run stably
• strong pulling force, drive stocks are driven by two servo motors, providing big pulling force
• high reliability

Main parameters of automatic coil winding machine ZPX800

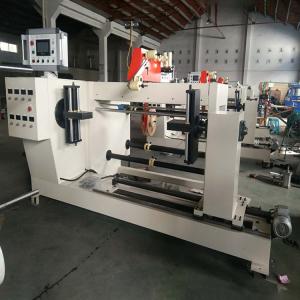

Fig 1: Automatic coil winding machine ZPX800's front view

Fig 2: Automatic coil winding machine ZPX800's back view
