Making Transformer Wire Automatic Coil Winder With Movable Tailstock

Brand Name : STT

Model Number : ZPX800

Place of Origin : China

MOQ : 1 set

Price : USD5000~ 15000

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 35 days

Packaging Details : seaworthy packing

Product name : transformer coil winding machine

Usage : winding transformer wire coil

Winding motor : 4kw

Winding speed : 0 ~ 160rpm

Conductor : cu wire or al wire

Conductor type : flat wire or round wire

Tailstock : movable

Winding shaft : 40x40mm

Contact Now

Making Transformer Wire Coil devanadera Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX800

Automatic coil winding machine ZPX800 is mainly used to wind transformer coils and other similar products. With a movable tail stock, the coils wound by the automatic coil winding machine is very ease to remove from the winding shaft after finishing winding. With control system based on PLC, the automatic coil winding machine is programmable and has rich functions. The wire guide is driven by a 750w servo motor, which guarantees the wire guide move precisely. The automatic coil winding machine features high automatic, easy operation and so on.

Features of automatic coil winding machine ZPX800

slow starting,
smooth running,
full function,
high automation
PLC control system
50+ winding programs stored

Main parameters of automatic coil winding machine ZPX800

Center Height From Floor:	900mm
Winding Shaft Size:	40x40x1100mm
Maximum Winding Width:	800mm
Winding Motor Power:	4kw
Winding Speed:	0 ~ 160 rpm
Maximum Flat Wire Size:	5mm x 12mm
Round Wire Diameter:	Φ0.3mm ~ Φ5.0mm
Maximum Finished Coil OD.:	Φ800mm
Maximum Capacity:	700kg
Minimum Spread Pitch:	0.01mm
Counting Mode:	5-digit counting
Counting Turn Range:	0 - 9999.9

Making Transformer Wire Automatic Coil Winder With Movable Tailstock

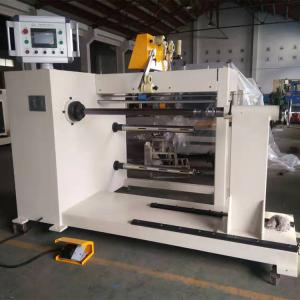

Fig 1: Automatic coil winding machine ZPX800's front view

Making Transformer Wire Automatic Coil Winder With Movable Tailstock

Fig 2: Automatic coil winding machine ZPX800's wire guide

Making Transformer Wire Automatic Coil Winder With Movable Tailstock
