Programmable PLC Control Folienwickelmaschine Transformer Copper Foil Winding Machine
Description of copper foil winding machine XB-BRJ300
Automatic copper foil winding machine XB-BRJ300 is one type of special equipment for winding small foil coil and other similar products. The copper foil winding machine can be used to wind copper or aluminium strip with maximum width 300mm. With one foil decoiler and one insulation paper decoiler, the copper foil winding machine can handle one layer of copper or aluminium foil and one layer of insulation paper. This kind of copper foil winding machine is provided with PLC control system, which makes the machine run automatically as per the parameters input. It is very easy to operate the copper foil winding machine through a touch screen.
Main Components of copper foil winding machine XB-BRJ300
1. Main frame
2. Foil decoiler
3. Pressing roller
4. Winding unit
5. Insulation decoiler
6. Edge alignment system
7. Automatic cold welding unit
8. Pneumatic unit
9. Electrical control system
10. Foot pedal
Technical parameters of copper foil winding machine XB-BRJ300
Typical standard specifications of copper foil winding machine XB-BRJ300 are shown below, however these can be modified as requested.
| Maximum Foil Width: | 300mm |
| Finished Coil OD. : | Φ600mm |
| Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | Φ500mm |
| Maximum Foil Material OD.: | Φ1000mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Maximum Coil Weight: | 750kg |
| Cleaning Unit Control Mode: | pneumatic |
| Insulation Decoiler Number: | 1 pc |
| Insulation Paper Coil OD.: | Φ400mm |
| Insulation Paper Coil ID.: | Φ76mm |
| Insulation Decoiler Width | 350mm |
| Insulation Paper Decoiler Shaft: | Expandable |
| Winding Speed: | 0～35 RPM |
| Winding Power: | 5.5kw |
| Programming Type: | PLC |
| Operation Interface: | Touch screen |
| Counting Range: | 0 ~ 9999.9 |

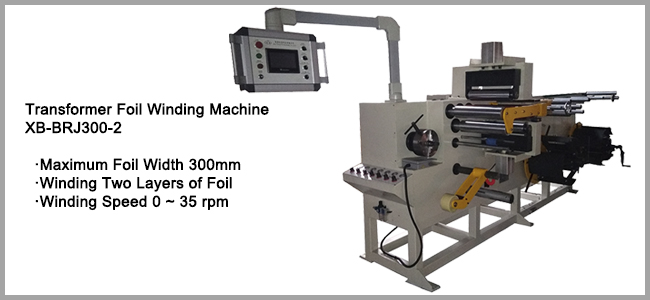

Fig 1: Copper foil winding machine XB-300's front view
Fig 2: Copper foil winding machine XB-BRJ300's insulation paper dereelers
fIG
