Cold Pressure Welding Conductor Foil Sheet Winder Copper Foil Winding Machine
Description of foil winding machine BRJ600-2
Copper foil winding machine BRJ600-2 is a professional conductor foil sheet winder equipment. The copper foil winding machine can be used to wind both copper foils and aluminium foils. The wound foil coils can be used in transformers and other similar products. With cold pressure welding unit, the copper foil winding machine can weld aluminium foil and copper bus bar together or weld copper foil and aluminium bus bar together. The copper foil winding machine can wind one or two layers of foils and wind one or two layers of insulation paper. With HMI, it is very easy to operate the copper foil winding machine.
Main components of copper foil winding machine BRJ600-2
1. Main steel welded frame
2. Two foil decoilers
3. Two foil feeder
4. Pressing roller
5. Winding unit
6. PLC based control system
7. Pneumatic system
8. Cold pressure welding unit
Technical parameters of copper foil winding machine BRJ600-2
Typical standard specifications of copper foil winding machine BRJ600-2 are shown below and the copper foil winding machine can also be manufactured as requested.
| Foil width: | 150 ~ 600mm |
| Conductor Foil Material: | Copper or Aluminum |
| Al Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Foil Decoiler: | 2 pcs |
| Foil Decoiler Diameter Range: | Ø400 ~ 520mm |
| Maximum Coil Weight: | 750 KG |
| Pressing Roller: | 2 set |
| Adjusting Speed Mode: | Stepless adjustable |
| Rotating Speed: | 0 ~ 26 rpm |
| Winding Power: | 11kw |
| Insulation Decoiler Number: | 2 pcs |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Programming Type: | PLC |
| Touch Screen: | 10inch (254mm) |
| Counting Range: | 0 ~ 9999.9 |

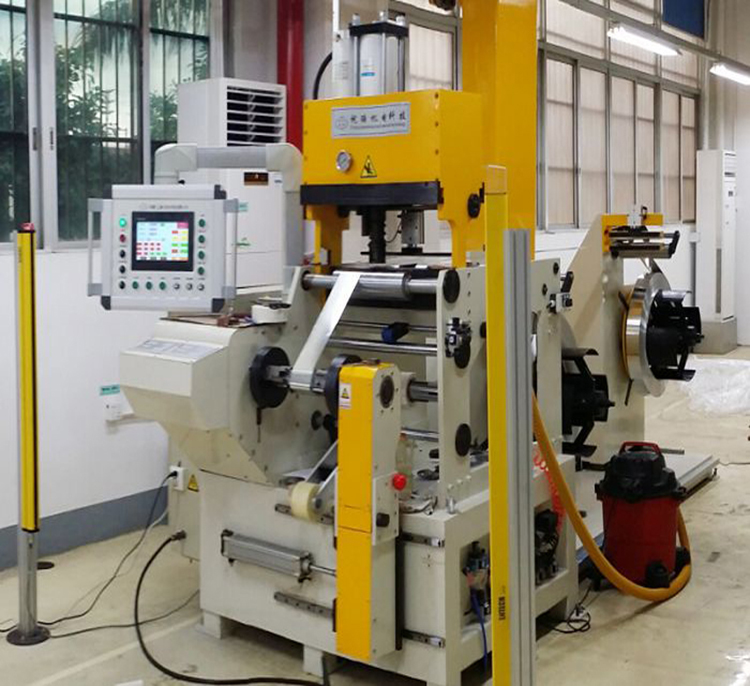

Fig 1: Copper foil winding machine BRJ300-2's front view
Fig 2: Copper foil winding machine BRJ300-2's cold pressure welding unit
