Programmable TIG Welding Two Layers Copper Foil Winding Machine

Brand Name : STT

Model Number : BRJ1000-2

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : seaworthy packing

Name : copper foil winding machine

Function : winding foil coil

Cu foil thickness : 0.2 - 2.0mm

Al foil thickness : 0.3 - 3.0mm

Foil width : 200 - 1000mm

Foil decoiler : 2 sets

Machine color : optional

Warranty period : one year

Contact Now

Programmable TIG Welding Two Layers Copper Foil Winding Machine

Description of copper foil winding machine BRJ1000-2

Copper foil winding machine BRJ1000-2 can wind conductor foil strip with maximum width 1000mm, the copper foil winding machine can wind copper foil strip with thickness from 0.2 mm to 2.0mm and aluminium foil strip with thickness from 0.3mm to 3.0 mm. With two foil decoilers, the copper foil winding machine can wind one or two layers of foil strip. TIG welding unit is also provided for the foil winding machine to weld bus bar and foil together. With PLC control system and HMI, the foil winding machine can be operated easily.

Main components of copper foil winding machine BRJ1000-2

Main frame
Winding unit
Foil decoiler
Insulation decoiler
End-fill strip feeder
Foil deburring system
Edge alignment system
Automatic welding unit

Technical Parameters of copper foil winding machine BRJ1000-2

Typical standard specifications of BRJ1000-2 are shown below and the foil winding machine can also be manufactured as requested.

Max. foil width:	1,000mm
Max. Finished Coil OD:	Ø1,000mm
Conductor Material:	Copper or Aluminum
Al Foil Thickness:	0.3 - 3.0 mm
Cu Foil Thickness:	0.2 - 2.0 mm
Conductor Material OD.:	Ø1,000mm
Conductor Material ID.:	Ø500mm
Foil Decoiler Diameter:	adjustable range Ø480 - 520mm
Winding Power:	15KW
Winding Speed:	0 ~ 20rpm
Welding:	TIG
Cutting:	Electric rolling shear
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
End-fill Strip Feeder:	8 pcs
Edge Alignment System:	Photoelectric sensing
User Interface:	10inch (254mm) touch screen
Counting Turns Range:	0 - 9999.9

Programmable TIG Welding Two Layers Copper Foil Winding Machine

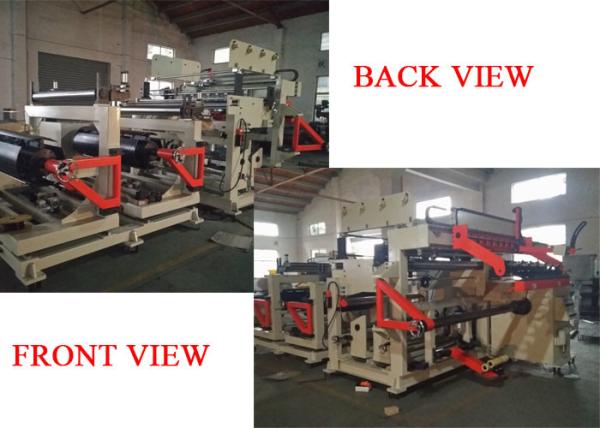

Fig 1: Copper foil winding machine BRJ1000-2's front view

Programmable TIG Welding Two Layers Copper Foil Winding Machine

Fig 2: Copper foil winding machine BRJ1000-2's welding unit
